Features

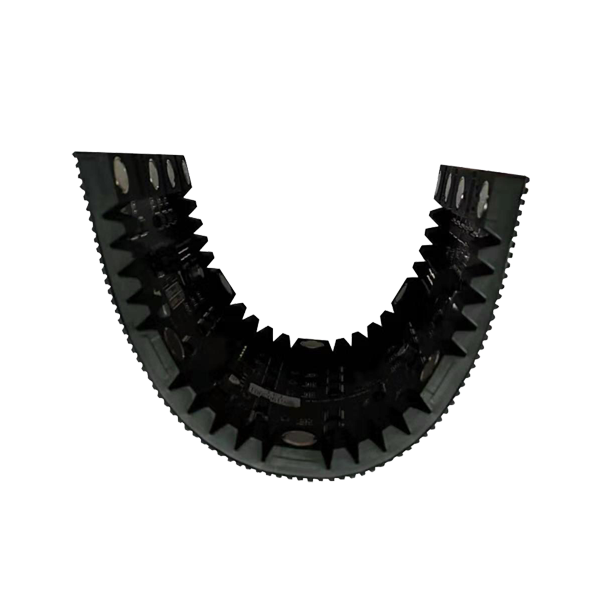

●     Ultra flexible: available for customized design and special structure;

●     High resolution & definition, high stability & reliability;

●     Installation friendly and easily with strong magnet to simple iron structure;

●     Ultra-thin: special material and advanced technology make it thin and light weight;

●     Non-cabinet: modules can be mounted directly onto the iron structure of any shape;

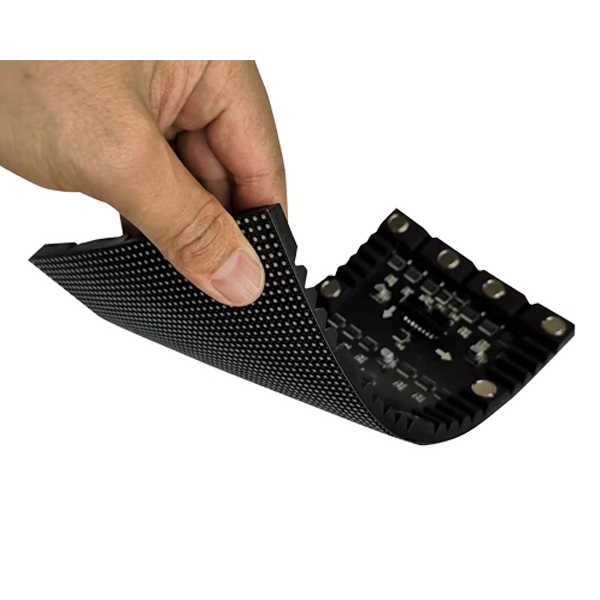

●     Over 10000 times testing of bending to ensure quality;





Application

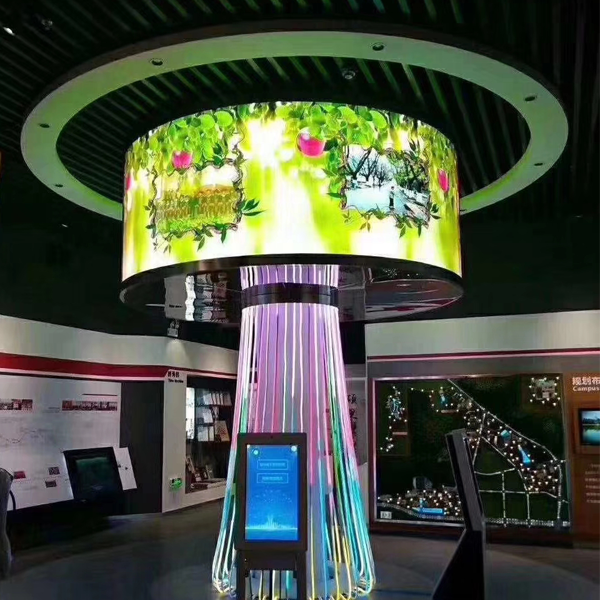

Irregular construction, customized structure, special design display for shopping Mall,

club, stage, stadium, concert, etc.

Specification

Model No.	iFlex18	iFlex20	iFlex25	iFlex30
Pixel Pitch (mm)	1.8	2.0	2.5	3.0
Pixel Density (pixel/sq.m)	284,444	250,000	160,000	111,111
LED Type	SMD 3 in 1, 1R1G1B
View Angle	H 140° / V 140°
Brightness	≥ 800 nits
Refresh Rate	≥ 1920 Htz
Module Size (W x H)	240 x 120 mm
Module Matrix (W x H)	128 x 64 pixels	120 x 60 pixels	96 x 48 pixels	80 x 40 pixels
Service Mode	Front Service / Rear Service
Contrast Ratio	≥ 8000:1
Input Voltage	AC 100/240V, ±10%
Power Consump.-Max	880 W/sq.m
Power Consump.-Average	265 W/sq.m
Working Temperature	-10℃ ~ 40℃
Storage Temperature	-40℃ ~ 60℃
Ingress Protection	IP40
Application Environment	Indoor
