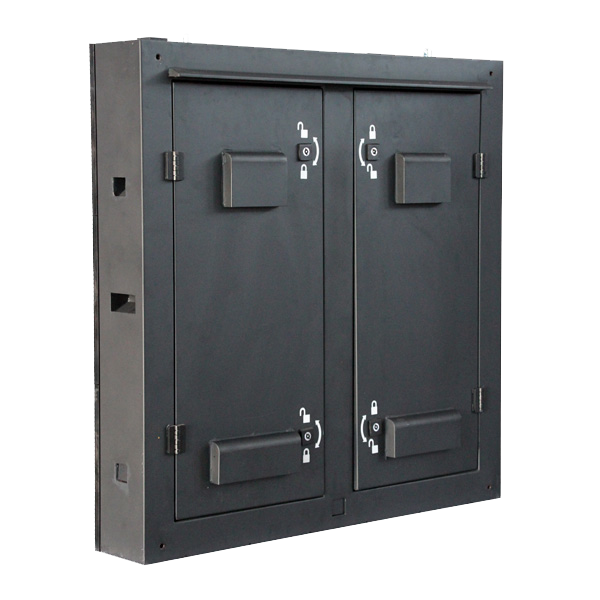

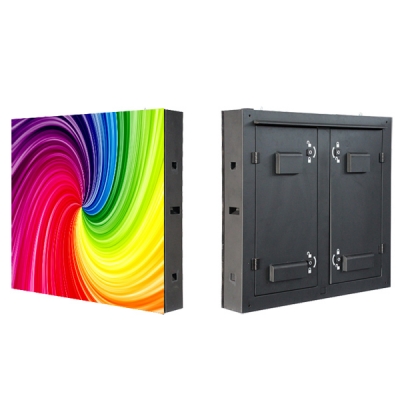

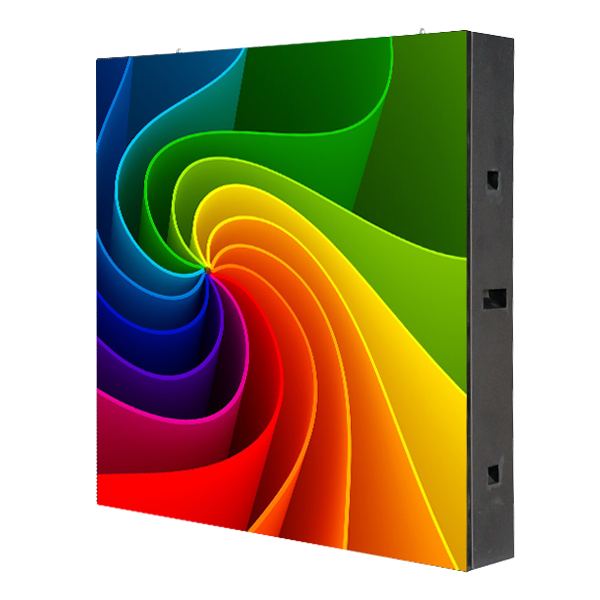

Outdoor Dual Access SMD LED Display

Outdoor Fixed | Front & Rear Access | SMD
Duo-S 6.67 | 8 | 10

Duo-S series LED display are accessible and serviceable in both front and rear of the
panel.It also provides view angle as wide as 140° in horizontal and vertical, to leads
outdoor advertising to larger area, perfectly brings vivid images and animation for
out-of-home media. Duo-S LED display is designed and made with IP65 rating ingress
protection for outdoor application. Strict selection and control on LED wavelength and
luminance enables high color uniformity; It is protected with strong material sheet and
welding from being deformed in transportation and installation.

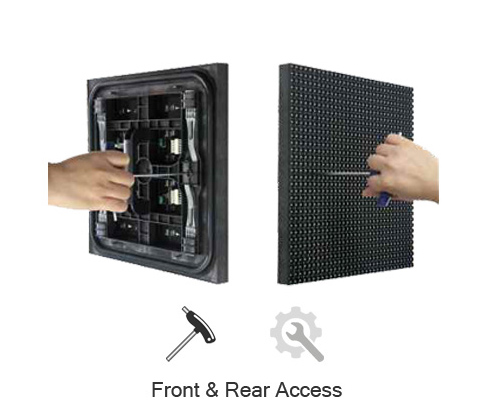

Accessible and Serviceable at Front and Rear

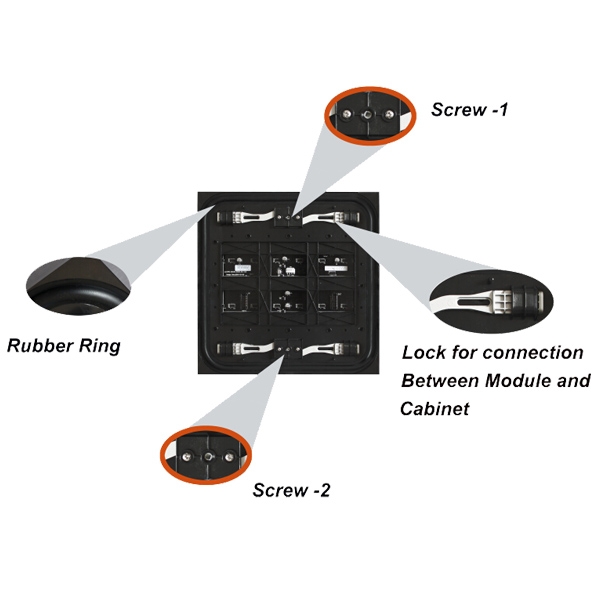

Modules are designed with fast lock and scews to be accessible at both front and rear side. Saving installation structure; Less service time and cost.

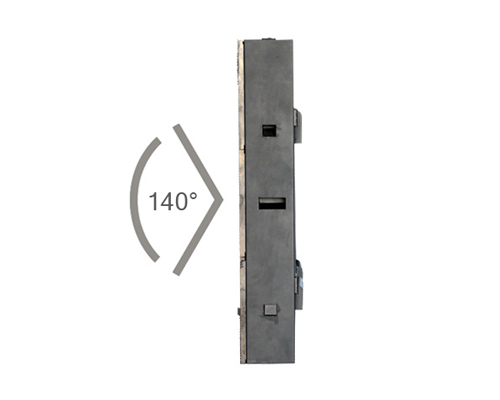

Wide View Angle

With SMD LED solution, the panel view angle as wide as 140° for both horizontal and vetical view, which brings images to a larger area.

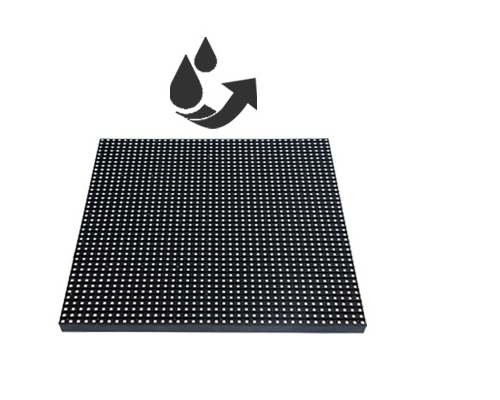

IP65 Rating Ingress Protection

Panel design with conformal coating and gasket for waterproof and dust-proof, and it reaches IP65 ingress protection for outdoor application

Standard Size Applicable with Multiple Models

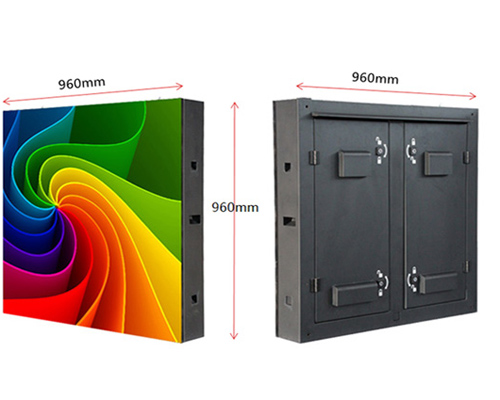

Panel standard dimension 960mm x 960mm, variable based on module size;
Applicable to multiple models of different pixel pitches including:
6.67mm / 8mm / 10mm

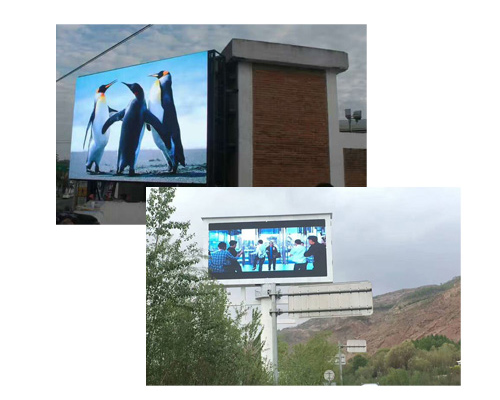

Application & Installation Places

Application: Advertising, LED Billboard, Scoreboard, Public Message, etc;
Installation Places: Building Wall, Roadside, Shopping Mall Square, Train Station, Airport, School, Stadium, Hospital, Church, etc.

Specification

	Duo-S 6.67	Duo-S 8	Duo-S 10
Pixel Pitch	6.67 mm	8 mm	10 mm
Pixel Density	22,498 pixels/㎡	15,625 pixels/㎡	10,000 pixels/㎡
LED Type	SMD 3 in 1, 1R1G1B	SMD 3 in 1, 1R1G1B	SMD 3 in 1, 1R1G1B
Module Size	320 x 320 mm	320 x 320 mm	320 x 320 mm
Panel Size	960 x 960 mm
Panel Resolution	48p x 48p	40p x 40p	32p x 32p
Power Consumption Max	780 W/㎡	550 W/㎡	580 W/㎡
Power Consumption Average	312 W/㎡	220 W/㎡	232 W/㎡
Driving Mode	1/6	1/5	1/4
Brightness	≥ 5500 nits	≥ 5500 nits	≥ 5000 nits
Optimal Minimum View Distance	7 meters	8 meters	10 meters
Refresh Rate	≥ 1920 Htz
View Angle	H 140° / V 140°
Power Input	AC 110/220, ±10%, 50/60 Htz
Operation Humidity	10% - 90% RH
Operation Temperature	-30 ~ 60 ℃
Ingress Protection	IP65
Service Type	Front & Rear
