Outdoor DIP Fixed LED Display

Outdoor | Fixed Installation | DIP
DoF 10 | 16

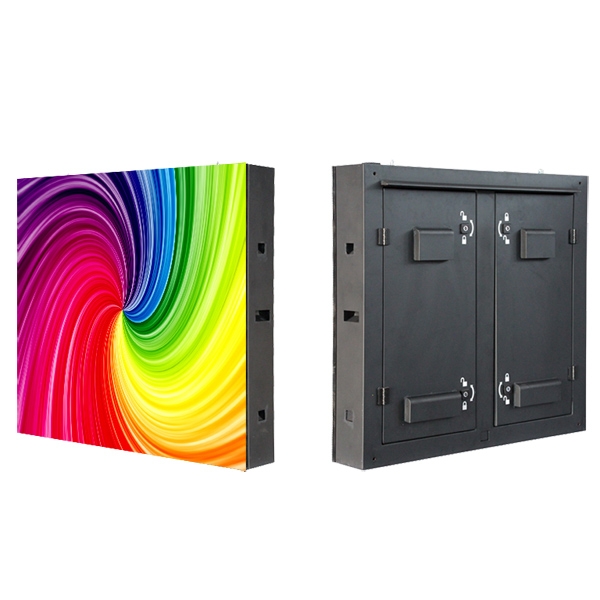

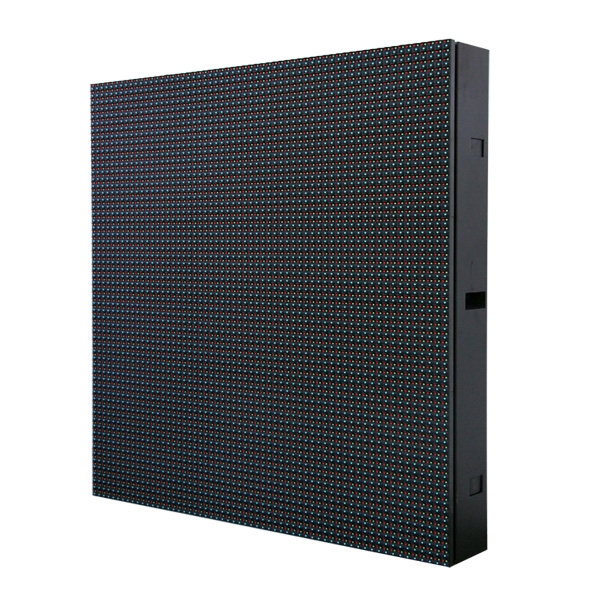

DoF series LED display is an outdoor LED display consists of 1R1G1B LED bulb as a
pixel. Its brightness reaches 7000 nits at least, visible in direct sunlight in the day time.
DoF LED display is designed and made with IP65 rating ingress protection for outdoor
application. Strict selection and control on LED wavelength and luminance enables high
color uniformity; It is produced with thick material sheet and solid welding from being
deformed in transportation and installation.

Specification




DoF10

DoF16

Pixel Pitch

10mm

16mm
Pixel Density

10,000 pixels/㎡

3,906 pixels/㎡
LED Type

DIP 346, 1R1G1B

DIP346, 1R1G1B
Module Size

160x160mm

256x128mm
Panel Size

960x960mm

1024x768mm
Panel Resolution

96p x 96p

64p x 48p
Power Consumption Max

520 W/㎡

550 W/㎡
Power Consumption Average

208 W/㎡

220 W/㎡
Driving Mode

1/4

Static
Brightness

≥7000 nits

≥ 7000 nits
Optimal Minimum View Distance

10 meters

16 meters
Refresh Rate

≥ 1920 Htz
View Angle

H 110° / V 55°
Power Input

AC 110/220V, ±10%, 50/60Htz
Operation Humidity

10% - 90% RH
Operation Temperature

-30 ~ 60 ℃
Ingress Protection

Front IP65 / Rear IP54

Service Type

Rear
