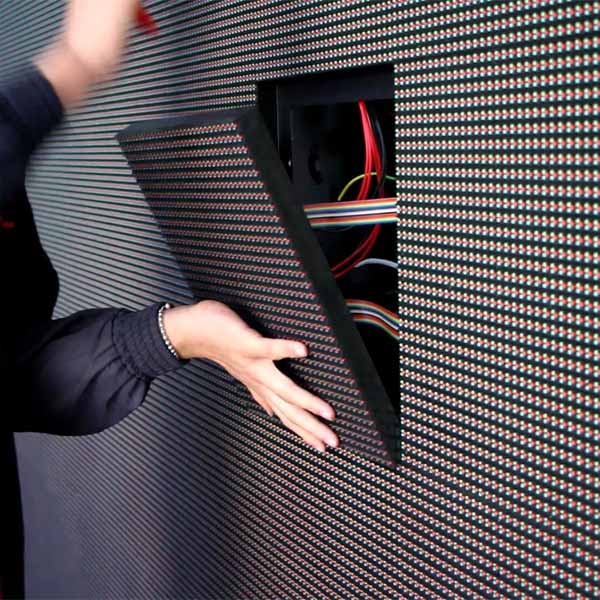

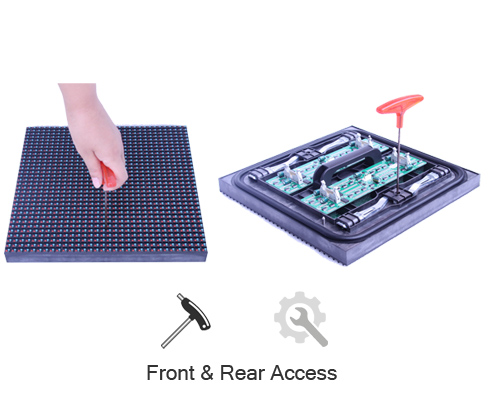

Accessible and Serviceable at Front and Rear Modules are designed with fast lock and scews to be accessible at both front and rear side. Saving installation structure; Less service time and cost. |

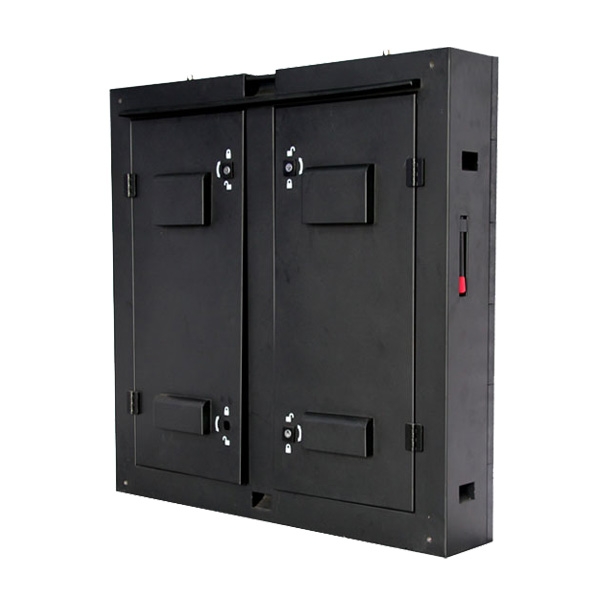

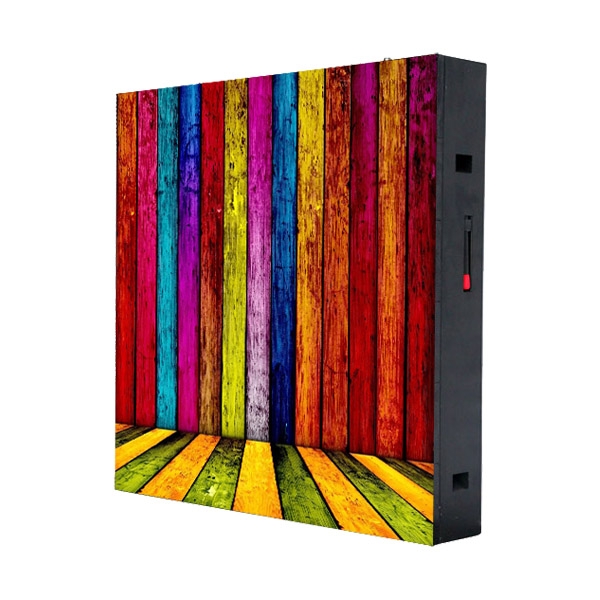

| Standard Size Applicable with Multiple Models Panel standard dimension 960mm x 960mm, variable based on module size; Applicable to multiple models of different pixel pitches including: 10mm / 16mm |
 |
 |

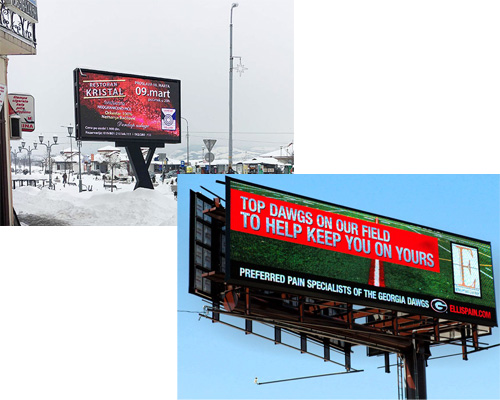

Application & Installation Places Application: Advertising, LED Billboard, Scoreboard, Public Message, etc; Installation Places: Building Wall, Roadside, Shopping Mall Square, Train Station, Airport, School, Stadium, Hospital, Church, etc. |
|
|
Dual-D10 |
Dual-D16
|
||
|
Pixel Pitch
|
10 mm |
16 mm |
||
|
Pixel Density
|
10,000 pixels/sq.m |
3,906 pixels / sq.m |
||
|
LED Type
|
|
DIP346, 1R1G1B |
|
|
|
Panel Size
|
960 x 960 mm |
960 x 960 mm |
||
|
Panel Resolution
|
96p x 96p |
60p x 60p |
||
|
Panel Material
|
Iron |
|||
|
Panel Weight
|
≤ 55 kg/㎡ |
|||
|
Power Consumption Max
|
690 W/㎡ |
580 W/㎡ |
||
|
Power Consumption Average
|
207 W/㎡ |
174 W/㎡ |
||
|
Driving Mode
|
1/4 |
Static |
||
|
Color Depth (bit)
|
14 bit |
|||
|
Brightness
|
≥ 7000 nits |
≥ 7000 nits |
||
|
Optimal Minimum View Distance
|
≥ 10 meters |
≥ 16 meters |
||
|
Refresh Rate
|
≥ 1920 Htz |
|||
|
View Angle
|
H 160° / V 160° |
|||
|
Power Input
|
AC 110/220, ±10%, 50/60 Htz |
|||
|
Operation Temperature
|
-20 ~ 50 ℃ |
|||
|
Ingress Protection
|
IP65 |
|||
|
Service Type
|
Front & Rear |
|||
 |
