.jpg) |

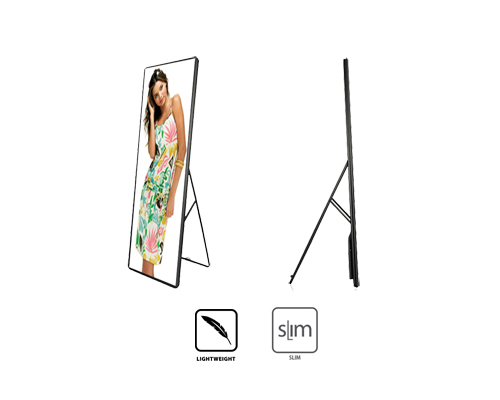

Slim Panel Design & Light Weight The panel depth is designed as slim as 35mm; Weight of each panel is less than 35kg. |

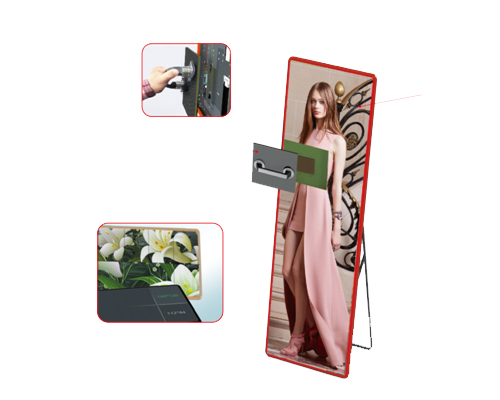

| Easy Service & Access With different structure design, it can be easily accessed in the front or at backside; Front service & rear service optionally. |
 |
 |

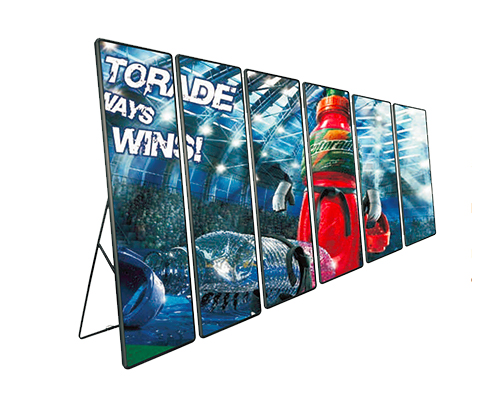

Cascade Display Mode Multiple iPixtar smart panels can be connected in a cascade mode, and play videos as a complete big LED screen. |

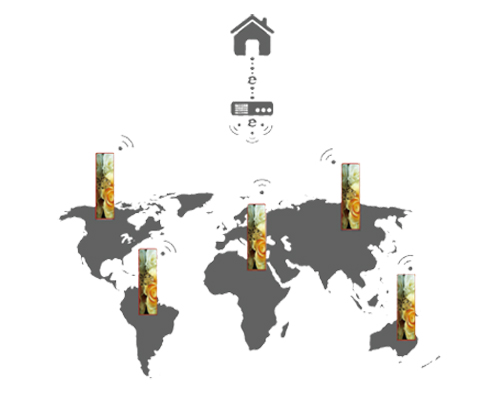

| Wireless Remote Control The iPixtar smart LED signs supports wireless control by Wifi, 3G or 4G optionally. They can be controlled or updated anywhere remotely. |
 |
 |

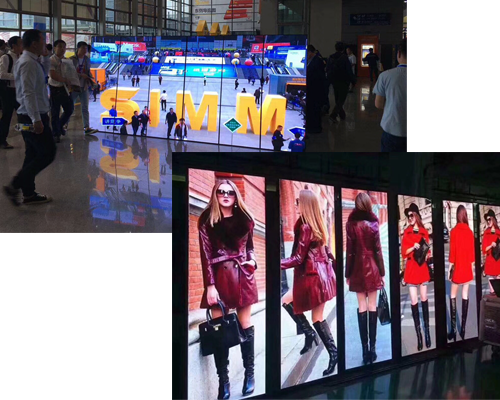

Models & Application Models: iPixtar-25 / iPixtar30; Application: Shopping Mall, Stores, Exhibition, Events, Airport, Train Station, etc.. |
|
|
iPixtar-25 |
iPixtar-30
|
||
|
Pixel Pitch
|
2.5 mm |
3.0 mm |
||
|
Pixel Density
|
160,000 pixels/sq.m |
111,111 pixels / sq.m |
||
|
LED Type
|
|
SMD 2121, 3 in 1 |
|
|
|
Panel Size
|
640 x 1920 x 35 mm |
576 x 1920 x 35 mm |
||
|
Panel Resolution
|
256p x 768p |
192p x 640p |
||
|
Panel Matarial
|
Aluminum |
|||
|
Panel Weight
|
≤ 35 kg/pc |
|||
|
Power Consumption Max
|
600 W/㎡ |
|||
|
Power Consumption Average
|
180 W/㎡ |
|||
|
Driving Mode
|
1/32 |
1/16 |
||
|
Color Depth (bit)
|
14 bit |
|||
|
Brightness
|
≥ 1000 nits |
|||
|
Optimal Minimum View Distance
|
≥ 2.5 meters |
≥ 3 meters |
||
|
Refresh Rate
|
≥ 1920 Htz |
|||
|
View Angle
|
H 160° / V 160° |
|||
|
Power Input
|
AC 110/220, ±10%, 50/60 Htz |
|||
|
Operation Temperature
|
-20 ~ 50 ℃ |
|||
|
Ingress Protection
|
IP30 |
|||
|
Display Mode
|
Asynchronous (USB/Cable/WIFI/4G, optional) |
|||
 |
