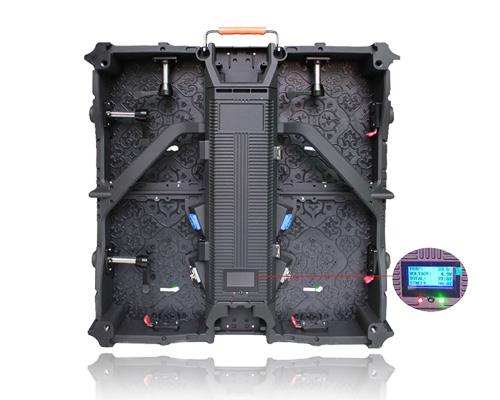

Innovative Design with Visible Working Status Panel is designed with strong handle for easier carry and assembly; Mechanical design has an air of strongness of simplicity. LCD monitoring screen indicates panel working status including temperature, voltage, working time, etc.. |
| Front Service Module with magnet design enables fast front service with special tool. All internal components accessible in the front of LED screen. |
 |
 |

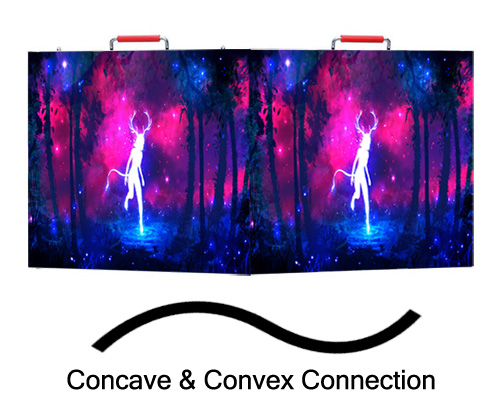

Concave and Convex Panel design with adjustable angle lock makes the panel connection to be flat, concave and convex surface. The curve up to ±15°. |

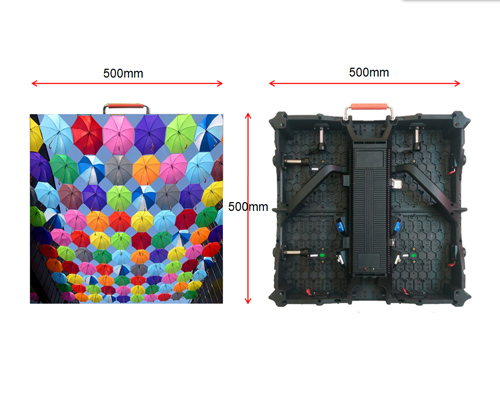

| Standard Size Applicable with Multiple Models Panel standard dimension 500mm x 500mm; Applicable to multiple models of different pixel pitches including: 2.976mm / 3.91mm / 4.81mm |
 |
|
|
DiR-29 |
DiR-39 |
DiR-48 |
|
Pixel Pitch
|
2.976 mm |
3.91 mm |
4.81 mm |
|
Pixel Density
|
112,896 pixels/㎡ |
65,536 pixels/㎡ |
43,264 pixels/㎡ |
|
LED Type
|
SMD 2121, 3 in 1 |
SMD 2121, 3 in 1 |
SMD 2121, 3 in 1 |
|
Module Size
|
250 x 250 mm |
||
|
Panel Size
|
500 x 400 mm |
||
|
Panel Resolution
|
168p x 168p |
128p x 128p |
104p x 104p |
|
Panel Type
|
Die-Casting Aluminum |
||
|
Panel Weight
|
9 KG/panel |
9 KG/panel |
9 KG/panel |
|
Power Consumption Max
|
660 W/㎡ |
640 W/㎡ |
580 W/㎡ |
|
Power Consumption Average
|
198 W/㎡ |
192 W/㎡ |
174 W/㎡ |
|
Driving Mode
|
1/21 |
1/16 |
1/13 |
|
Color Depth (bit)
|
14 bit |
||
|
Brightness
|
≥ 1000 nits |
≥ 1000 nits |
≥ 1000 nits |
|
Optimal Minimum View Distance
|
2.9 meters |
3.9 meters |
4.8 meters |
|
Refresh Rate
|
≥ 1920 Htz |
||
|
View Angle
|
H 160° / V 160° |
||
|
Power Input
|
AC 110/220, ±10%, 50/60 Htz |
||
|
Operation Humidity
|
10% - 90% RH |
||
|
Operation Temperature
|
-30 ~ 60 ℃ |
||
|
Ingress Protection
|
IP30 |
||
|
Service Type
|
Front / Rear |
||
 |
